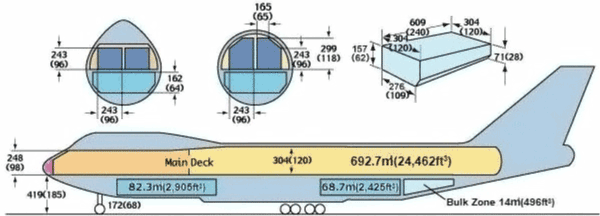

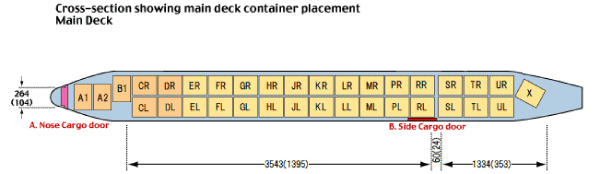

Main Deck Cross Section
[cm(inches)]
Main Deck Weight Limitation (96''×125'' ULD)
[kg(lb)]
| Position | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A1,A2 | B1 | C,D | E,F,G | H | J,K | L,M,P | R,S | T,U | X | ||
| 3,674 (8,100) |
3,582 (7,899) |
6,112 (13,465) |
8,212 (18,125) |
8,504 (18,750) |
8,504 (18,750) |
8,212 (18,125) |
6,112 (13,465) |
5,815 (12,820) |
3,400 (7,495) |
||
